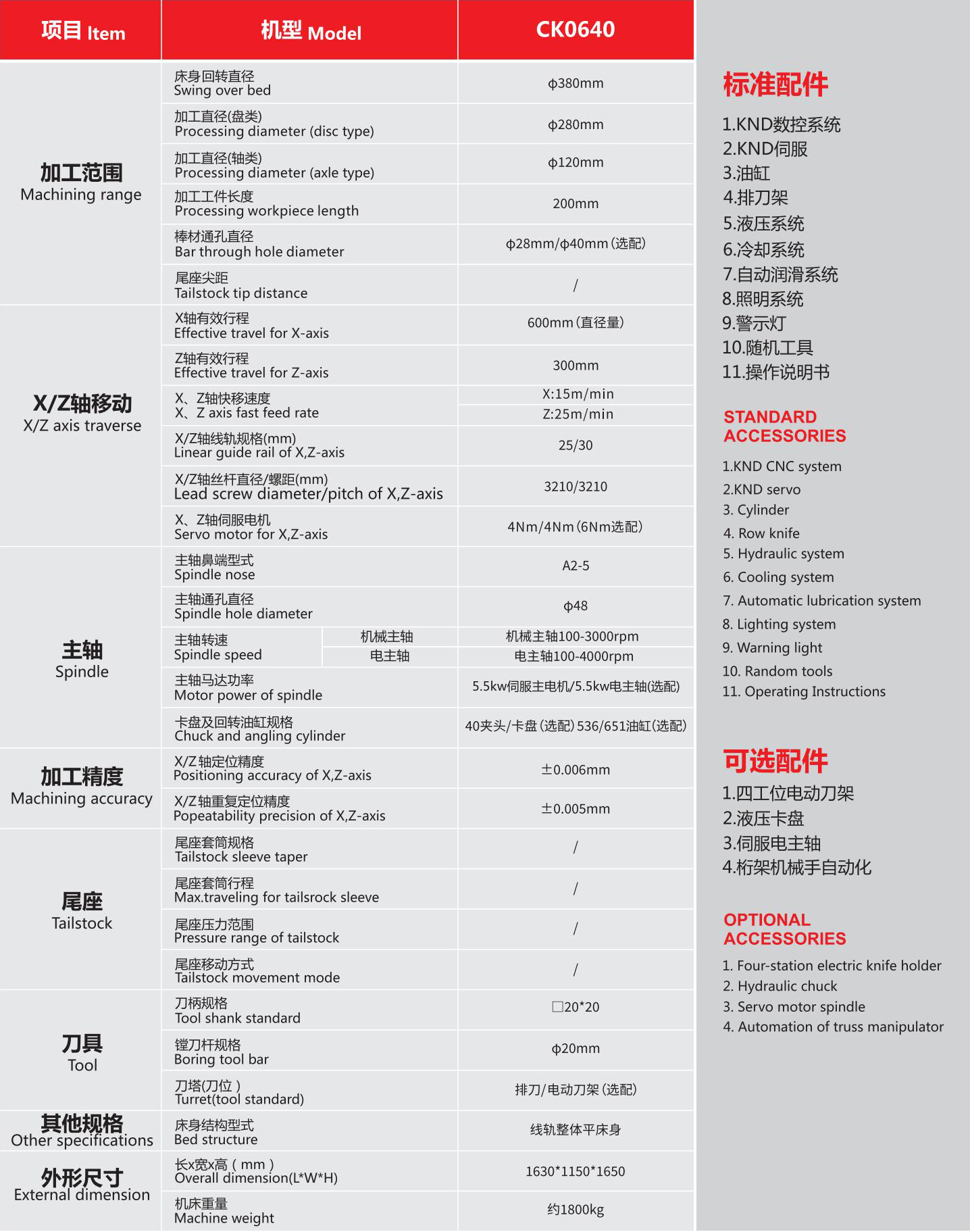

CK0640 Line CNC lathe
- Tel:+86-576-87213806
- Email:zjygcnc@163.com
1.Bed structure
The use of high-rigidity cast iron, resin sand process, bed feet and the overall structure of the bed with a smooth chip, compact structure, beautifulshape and so on.
2.Knife cutter
The novel servo turret ensures a repeated tool change error of±3um , ensures high-speed and accurate tool changeand can significantly save processing time.
3.High precision feed
feed the axis ofthe whole servo drive, the use of Taiwanintime linear quide to ensure the accuracy of processing and long time to maintainthe accuracy ofthe feed axis repeat positioning accuracy<±3um.
4.Efficient processing
FThe maximum speed ofthe machine spindle is 3000 rpm, the X axis can move up to 10 m/min, the Z axis can move up to 15 m/min, he highprecision hydraulic rotary cylinder, the precision elasticity chuck. lmprove the toughness of the material cutting and strong cutting capacity.
5.Strong cooling
High-power strong cooling pump, improved parts cutting, according to customer requirements can be installed 1-4 cooling tube, cooling performance.
